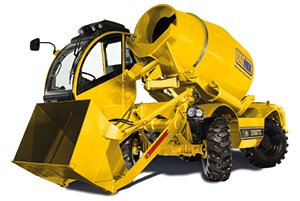

Carmix 3500TC

NEW Ergonomic Cab Design

NEW Concrete-mate: Load Cell System

The Carmix 3500TC is the most popular unit worldwide due its’ versatility and the perfect balance between the 3.5m³ concrete yield per batch and the per hour productivity.

The 300° slewing drum has a 4850 litre capacity and is fitted with double mixing screws, while the drum’s rotation is controlled by a hydraulic motor which controls the mixing and discharging speed.

The Carmix 3500TC loading arm is equipped with a self-articulated hydraulically operated 600 litre shovel with opening gate that allows accurate loading of aggregates and cement. Additionally the Carmix 3500TC has two 400 litre tanks with a water pump capable of pumping 400 litres per minute to allow efficient addition of water to drum during batching.

The Carmix 3500TC has an operating speed of 0-10km/h, road transfer speed from 0-30km/h and is capable of operating on gradients of up 30° fully loaded.

The unique “Load Cell” Carmix electronic weighing system is available for the Carmix 3500TC unit which allows the precise control and monitoring of concrete production, therefore ensuring 100% quality of concrete. This system includes four Load Cells, located under the drum as well as a Concrete-Mate computer display and printer.

Additional Option for the complete Batch Plant :

NEW Promix: In-drum probe, easily allows one to monitor your concrete: slump, volume, temperature, humidity and ready-mix indicator: Your on site Lab!
